Mouldpro Power Sliding Mold Clamps and the SMARTFLOW FasTie system work together to shorten mold changeover times with faster clamping and tying-in of ejector rods on the mold.
These advanced tools reduce setup times by 60% or more to enhance productivity and ensure a safer working environment.
Mouldpro Power Sliding Mold Clamps

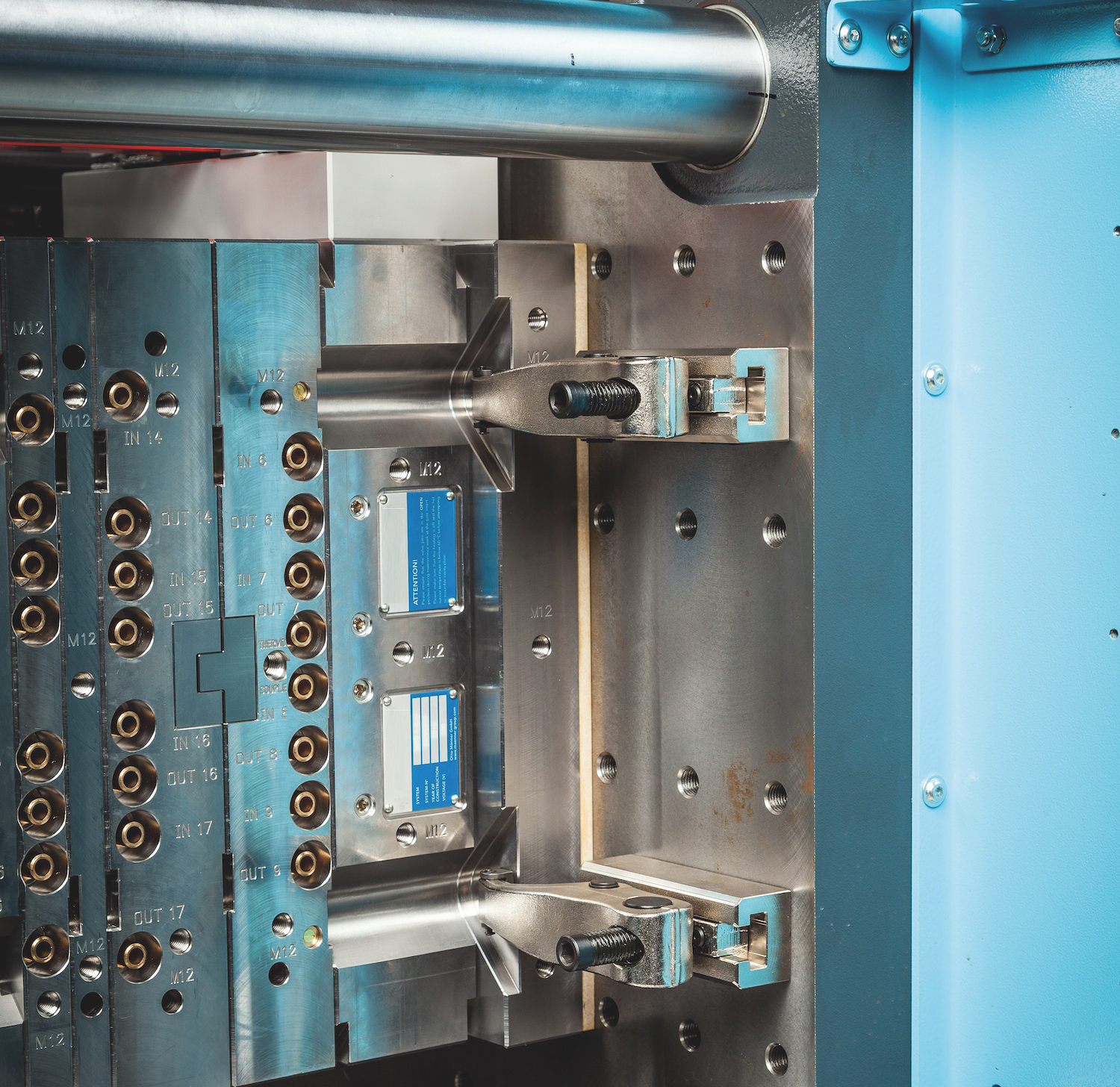

Mouldpro’s sliding mechanism allows the clamp to slide about 2 inches forward or backward in a T-slot while remaining mounted on the platen— much faster than the traditional process of bolting clamps to the platen every time.
Mouldpro clamps can be either bolted to the platen or fastened in the T-slots, if T-slots are configured on the machine. The clamp can be easily adjusted to secure the mold and quickly tightened into position.
Mouldpro Power Sliding Clamps offer adjustable reach to accommodate a range of mold and backplate sizes. Planning ahead will help maximize time savings during installation. These clamps work best with molds built with bases that fall within a size range or have a standard plate that are within the clamp’s reach once mounted.
Mouldpro Power Sliding Mold Clamp specifications:
| Item# | e1 (mm) | h Min/Max (mm) | S Min/Max (mm) | Inbus Bolt Size | Clamping Force (kg) |
Weight |
| SC-100 | 100 | 0-50 | 12-66 | Clamp up to 1/2″ | 1600 | 4 lbs |
| SC-200 | 113 | 0-60 | 15-83 | Clamp up to 5/8″ | 2000 | 7 lbs |
| SC-250 | 125 | 0-65 | 18-96 | Clamp up to 3/4″ | 2500 | 10 lbs |
| SC-300 | 175 | 20-80 | 22-95 | Clamp up to 1-1/4″ | 5500 | 20 lbs |
SMARTFLOW FasTie Systems
FasTie eliminates the need for mold setters and technicians to insert their hands into the machine to attach the ejector rods to the ejector plate. FasTie enables operators to automatically couple and uncouple the rods quickly and easily – within just 1 to 2 minutes.
Traditionally, tying in an ejector plate is a manual system that requires the mold setter to physically bolt the ejector rod to the machine’s ejector plate. Machine guards and other physical barriers make manually bolting ejection rods difficult and time-consuming.
Users report that the FasTie system has work for 10 to 15 years without replacement. Proper installation and alignment ensure minimal maintenance, with easy access for unthreading and rethreading the ejector rod to the mold connection.
FasTie’s benefits include:
-
-
- Reduced downtime: Quick-release mechanism for fast and easy mold changes.
- Custom options: Available in various sizes and thread lengths.
- Cost savings: Durable, longer-lasting components reduce replacements and minimize maintenance costs.
- Added safety: No manual entry required into the press/ejection box on box area.
-
Plastics manufacturing products built to last
As a distribution partner with SMARTFLOW and Mouldpro, Plastixs provides durable, high-performance products that will help you stay productive and competitive. Plastixs delivers the expertise needed to ensure your team uses these products properly and effectively, achieving maximum value. Contact us today to learn how we can help optimize your injection molding operations.
