Electric Crane for Plastics Injection Mold
Features & Benefits:

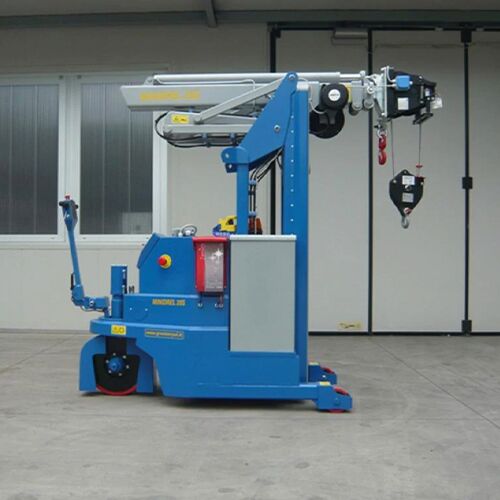

The MINIDREL 20S_HG is the mold lifting machine designed to lift and carry loads up to 2.000 kg. Ideal for use in plastics, mold lifting and industrial maintenance applications.
The small size of the MINIDREL 20S HG crane makes it possible to achieve a high level of performance in small spaces.
Technical Specifications:
Maximum load capacity | 2.000 Kg |
Standard min. hook’s height from the ground | 1.800 mm |
Standard max. hook’s height from the ground | 3.600 mm |
Possibility to extend height up to (option) | – |
Standard max. telescopic extension | 1.500 mm |
Capacity at standard max. telescopic extension | 700 Kg |
Possibility to extend telecopic extension up to (option) | 5.000 mm |
Capacity at max.telescopic extension (point 7) | 160 Kg |
Rotation (option) | – |
Wheelbase | 1.250 mm |
Dimensions- lenght | 1.610 mm |
Dimensions- width | 950 mm |
Dimensions- height | 2.320 mm |
Adjustable speed from / to | From 0 to 60 m/min |
Max. surmountable slope ( unloaded ) | 8% |
Max. surmountable slope ( loaded ) | 3% |
Front wheels | 2 x Ø 160 x 80 mm |
Rear driving wheel | 1 x Ø 450 x 110 mm |
Wheels material | Polyurethane |
Drive | REAR WHEEL |
Total weight: | 3.200 Kg |
Electric motor power | 3,0 KW / 24 cc. |
Hardened battery (standard) | 280 Ah / 24 V |
Battery charger on board | 110 / 240 V -50/60 Hz |
Lead acid battery | – |
Gel battery | ● |
Additional autonomy of battery | ○ |
Proportional control on board of all mouvements | ● |
Certification to standard 2006/42 CE | ● |
Made in accordance (not certified) to standard UL508 A | ● |
Certification (issued by Third Party) to standard UL508 A | ○ |
Drive hydraulic unit | ● |
Automatic braking system | ● |
Overloading safety system | ● |
Pressure safety valves on each movements | ● |
Safety emergency electric devices | ● |
Winch (lifting capacity on demand) | ○ |
Wireless remote control (capacity on demand) | ○ |
User Manual and technical documentation | ● |
Possibility to do all movements with max. Load | ● |
