Electric Crane for Plastics Injection Mold
Features & Benefits:

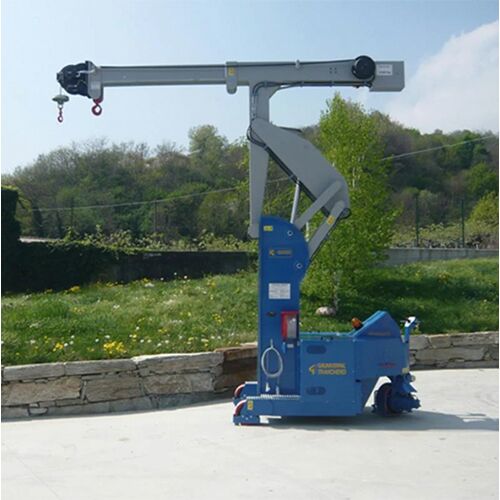

The MINIDREL 40S HG is the mold lifting machine designed to lift and carry a load of up to 4,000 kg. Ideal for use in the plastic materials, mold lifting sector and for industrial maintenance applications.
The small size of the MINIDREL 40S HG crane allows to reach a high degree of performance in small spaces.
Technical Specifications:
| Maximum load capacity | 4,000 Kg |
| Standard minimum hook’s height from ground | 2,400 mm |
| Standard maximum hook’s height from ground | 4,800 mm |
| Possibility of extension in height up to (optional) | 5,000 mm |
| Standard telescopic extension | 1,350 mm |
| Capacity at max. standard telescopic extension | 4,000 Kg |
| Telescopic extension up to (optional) | 3,600 mm |
| Capacity at max. telescopic extension (point 7) | 1,350 Kg |
| Rotation (optional): | – |
| Wheelbase: | 2,000 mm |
| Dimensions – length | 2,470 mm |
| Dimensions – width | 1,430 mm |
| Dimensions – height | 2.850 / 2.950 / 3.050 mm |
| Adjustable speed from / to: | From 0 to 60 m / min |
| Maximum surmountable slope (unloaded) | 8% |
| Maximum surmountable slope (loaded) | 3% |
| Front wheels | 2 x Ø300 x 140 mm |
| Rear wheels | 1 x Ø 450 x 180 mm |
| Wheel material | Polyurethane |
| Driving traction | REAR WHEEL |
| Total weight | 6,300 Kg |
| Electric motor power | 5.0 KW / 24 cc. |
| Hardened battery (standard) | 420 Ah / 24 V |
| Battery charger on board | 110/240 V -50/60 Hz |
| Lead acid battery | ● |
| Gel battery | ○ |
| Longer battery life | ○ |
| Proportional control of all movements | ● |
| Certification according to 2006/42 CE standard | ● |
| Production according to UL508 A standard | ● |
| Certification (from third party company) standard UL508 A | ○ |
| Hydraulic traction control | ● |
| Automatic braking system | ● |
| Anti-tipping safety system | ● |
| Pressure control safety valves on each movement | ● |
| Electrical emergency safety devices | ● |
| Winch (lifting capacity on request) | ○ |
| Wireless remote control (capacity on demand) | ○ |
| User manual and technical documentation | ● |
| Possibility to do all movements with maximum load | ● |
