Parallel with Weighing System F3310

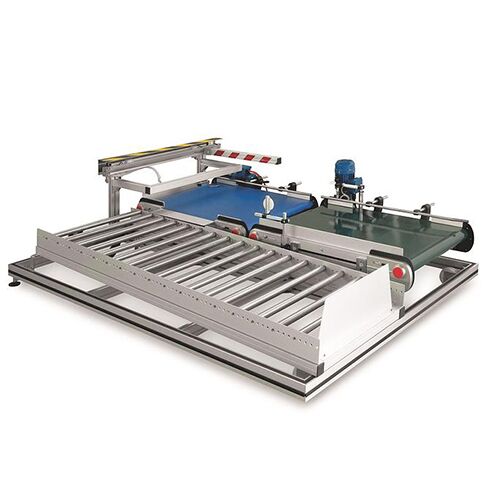

Parallel filling and storage system with weighing station made up from a linear conveyor, a weighing station and a gravitational roller conveyor.

Technical Specifications:

Frame anodised extruded aluminium profile
die cast aluminium alloy head supports
Sidewalls 1 anodised extruded aluminium profile
1 stainless steel adjustable sidewall
Stand support levelling elements
Weighing system load cells
Pneumatic anodized extruded aluminium profile pneumatic arm to move the full box from weighing station to roller conveyor
Belt green PVC
max temperature resistance 80°C
Drive direct
3 Phase – 400Vac/50Hz – 0,18kW asynchronous motor
Speed 3,2 m/min (conveyor with empty boxes)
6,4 m/min (weighing station)
Sensor photocell/refracting to detect the box on the first conveyor
photocell/refracting to detect the box in the filling position (weighing station)
Roller conveyor frame
anodised extruded aluminium profile
extruded aluminium profile rollers supports
extruded aluminium profile box stop
