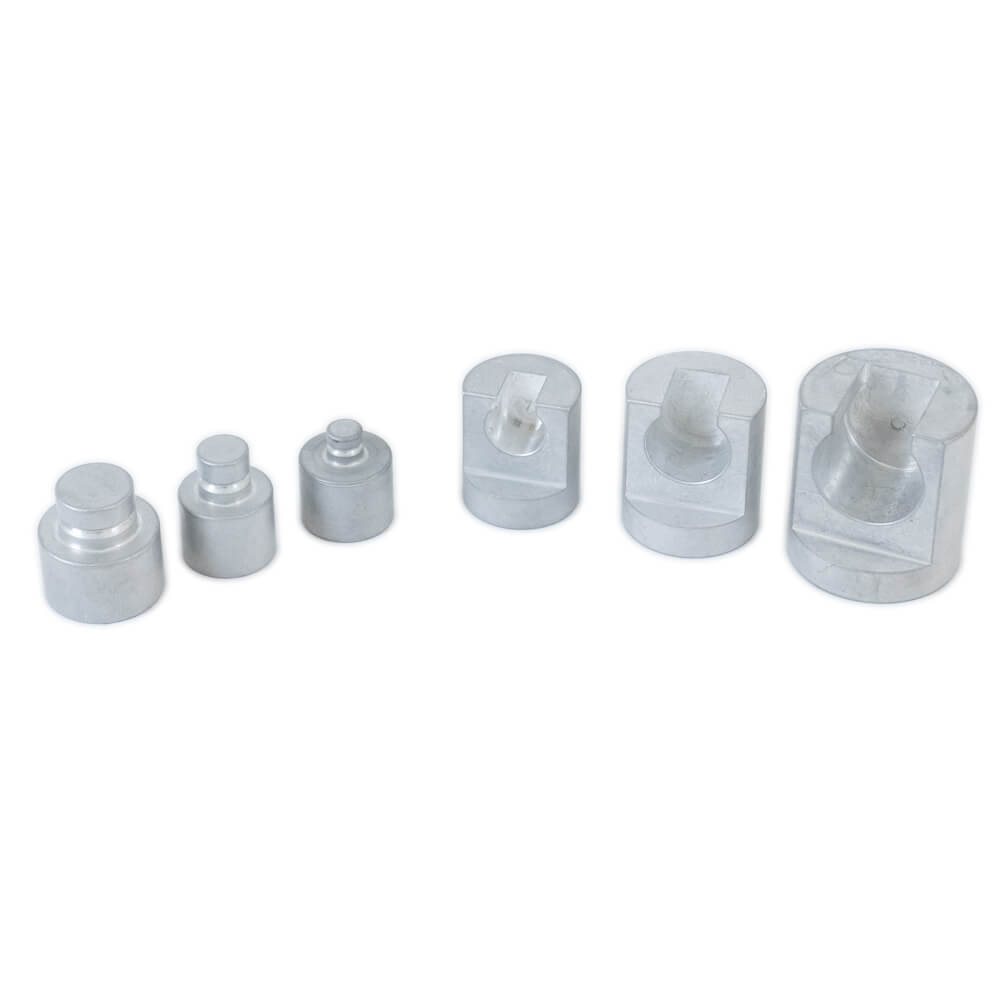

Barb-Tech™ PQD-CM Custom Mold Style Push-Lock Assembly Tool Kit

Item #: 08-2505-00

$653.00

BarbTech logo

Take the PUSH out of Push-Lock! The Barb-Tech™ PQD-CM Push-Lock Assembly Tool Kit comes with a dedicated mandrel set designed to be compatible with Custom Mold style Flow-Thru style Quick Disconnect fittings used in water systems common in the plastics injection molding industry. The PQD-CM Hose Assembly Tool simplifies and reduces the installation time of straight and 90° 200 Series (1/4″), 300 Series (3/8″), and 500 Series (1/2″) series Quick Disconnect fittings and provides a quick, easy, effortless method for Push-Lock hose assembly.

FEATURES & BENEFITS

  • Easily installs 1/4″, 3/8″, 1/2″, and 3/4″ Push-Lock hose on straight and 90° 200 Series (1/4″), 300 Series (3/8″), and 500 Series (1/2″) series Custom Mold style Quick Disconnect fittings
  • Mandrels sizes and styles change easily using the quick change “Click-On” mandrel system
  • Lightweight and portable – take the tool to the hose
  • No additional tools or attachments required

Specifications

Weight (Complete Kit) 8 lb
Dimensions (Complete Kit) 22″ wide, 12″ deep & 5″ high
Part # 08-2505-00
Hose Type/Size 1/4″ to 3/4″ ID Rubber Hose
Kit Includes

1. Barb-Tech™ PQD Push-Lock Hose Assembly Tool

2. Mandrel Set of (3) for Straight Quick Disconnect Fittings:

3. Mandrel Set of (3) for Custom Mold Style 90° Quick Disconnect Fittings

Mandrel Set Item# 08-1007-00
Includes:

  • 200 Series (1/4″) Compact/Jumper 90° High-Flow Quick Disconnect Mandrel – Item# 75-1025-00
  • 300 Series (3/8″) Compact/Jumper 90° High-Flow Quick Disconnect Mandrel – Item# 75-1027-00
  • 500 Series (1/2″) Compact/Jumper 90° High-Flow Quick Disconnect Mandrel – Item# 75-1029-00

4. Carrying/Storage case



Additional information

Weight 8 lbs
SKU 08-2505-00
