Barb-Tech™ PQD Push-Lock Assembly Tool Kit

Item #: 08-2500-00


BarbTech logo

Take the PUSH out of Push-Lock! The Barb-Tech™ PQD Push-Lock Assembly Tool is designed specifically for the plastics injection molding industry to easily install the common “Quick Disconnect” fittings used on an injection molding line for water and air. The PQD tool provides a quick, safe, effortless method for push-lock hose assembly


  • Installs Push-Lock hose onto 1/4″, 3/8″, and 1/2″, straight and 90° Quick Disconnect fittings
  • Optional mandrel sets available for 45° fittings
  • Mandrel sizes and styles change easily using the quick change “Click-On” mandrel system
  • Lightweight and portable
  • No additional tools or attachments required

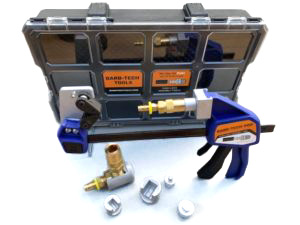

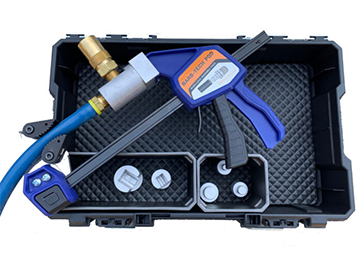

  • Kit includes:
    • (1) Barb-Tech™ PQD Push-Lock Assembly Tool
    • (3) mandrels for straight fitting assemblies and (3) mandrels for 90° fitting assemblies
    • (1) Convenient carrying/storage case for organization and to prevent lost parts

Additional information

Weight 5.5 lbs
SKU 08-2500-00
