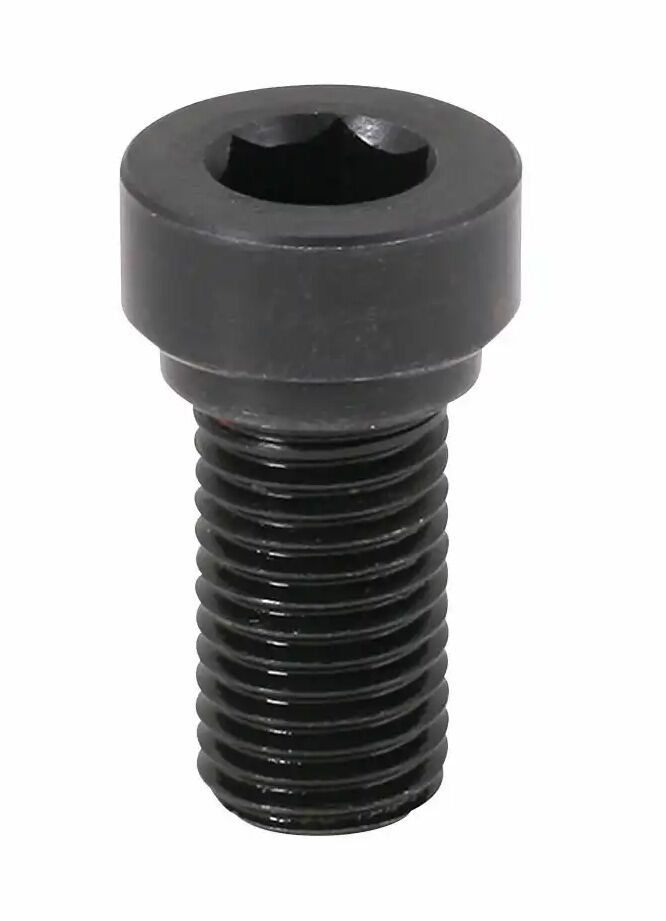

Inbus Bolt (Hex Head Bolt) for Mouldpro Power Sliding Mold Clamp.

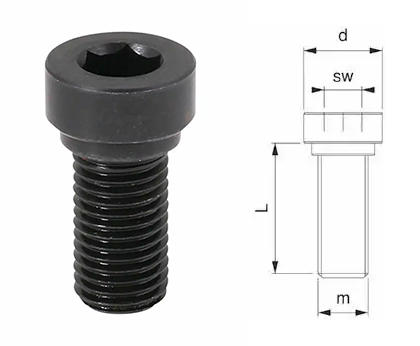

| Item# | Size | Clamp Reference | m | L | d | SW |
| 1120-1/2 | 1/2″ | SC-100 | M10 | 29 | 16.5 | 8 |
| 1120-3/8 | 3/8″ | SC-100 | M12 | 29 | 16.5 | 8 |
| 1130-1/2 | 1/2″ | SC-200 | M12 | 30 | 20.5 | 10 |
| 1130-5/8 | 5/8″ | SC-200 | M16 | 34 | 20.5 | 10 |
| 1150-3/4 | 3/4″ | SC-250 | M16 | 34 | 24.5 | 12 |
| 1150-5/8 | 5/8″ | SC-250 | M18 | 38 | 24.5 | 12 |
| 1160-1 | 1″ | SC-300 | M20 | 45 | 34 | 12 |
| 1160-1-1/4 | 1-1/4″ | SC-300 | M24 | 45 | 34 | 12 |
Material: 41 Cr 4 DIN
Quality: 10.9
Surface: Black Coating

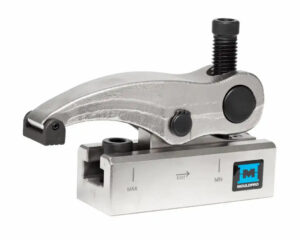

- Purchase Mouldpro Power Sliding Mold Clamp
