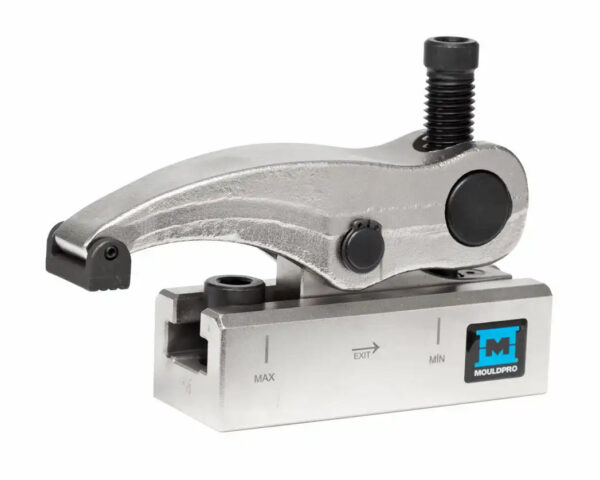

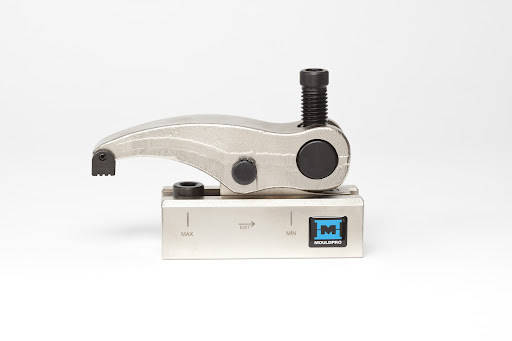

The Mouldpro Power Sliding Mold Clamp is used to facilitate quicker mold changes and offers an incredibly cost effective solution.

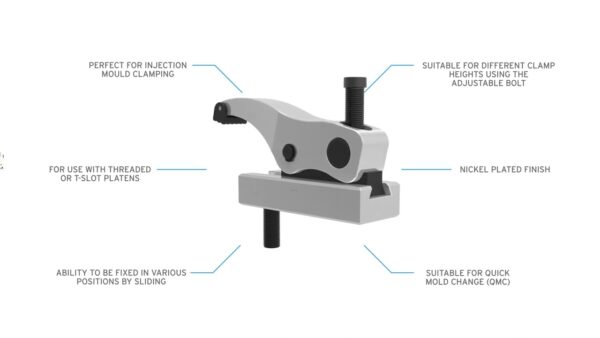

FEATURES & BENEFITS
- Accommodates a range of different back-plate sizes and thicknesses

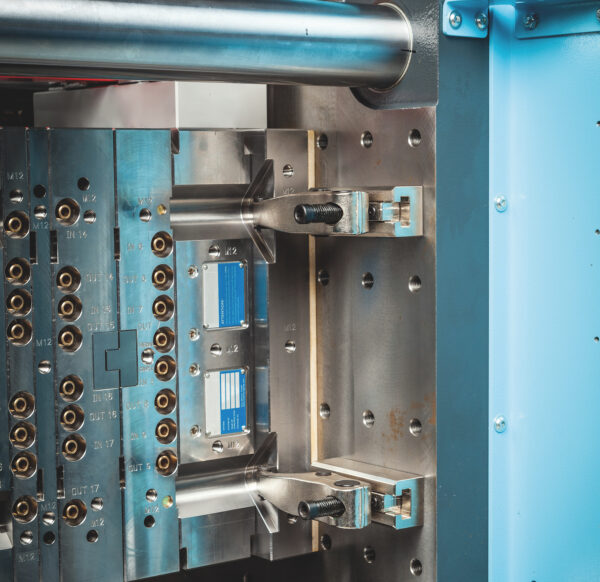

- Perfect for clamping of injection molds
- For use in threaded platens or t-slot platens
- Clamp slides by virtue of integral t-slots
- Height blocks available upon request

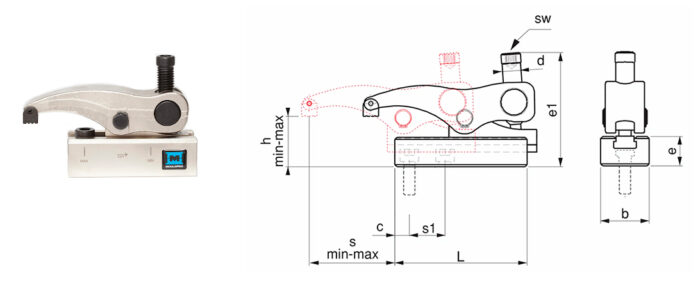

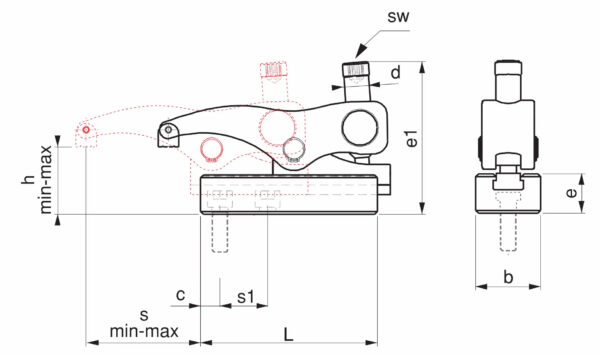

| Item# | e1 | h-Min | h-Max | S | Inbus Bolt (Hex Head Bolt) Item# | Inbus Bolt (Hex Head Bolt) Size | Clamping Force | Weight |
| SC-100 | 100 | 0 | 50 | 12-66 | 1120-1/2 or 1120-3/8 | Clamp up to 1/2″ Bolt Size | 1600 kg | 4 lbs |
| SC-200 | 113 | 0 | 60 | 15-83 | 1130-1/2 or 1130-5/8 | Clamp up to 5/8″ Bolt Size | 2000 kg | 7 lbs |
| SC-250 | 125 | 0 | 65 | 18-96 | 1150-3/4 or 1150-5/8 | Clamp up to 3/4″ Bolt Size | 2500 kg | 10 lbs |
| SC-300 | 175 | 20 | 80 | 22-95 | 1160-1 or 1160-1-1/4 | Clamp up to 1-1/4″ Bolt Size | 5500 kg | 20 lbs |

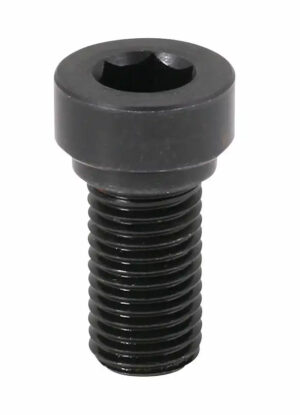

- Purchase Inbus Bolt
