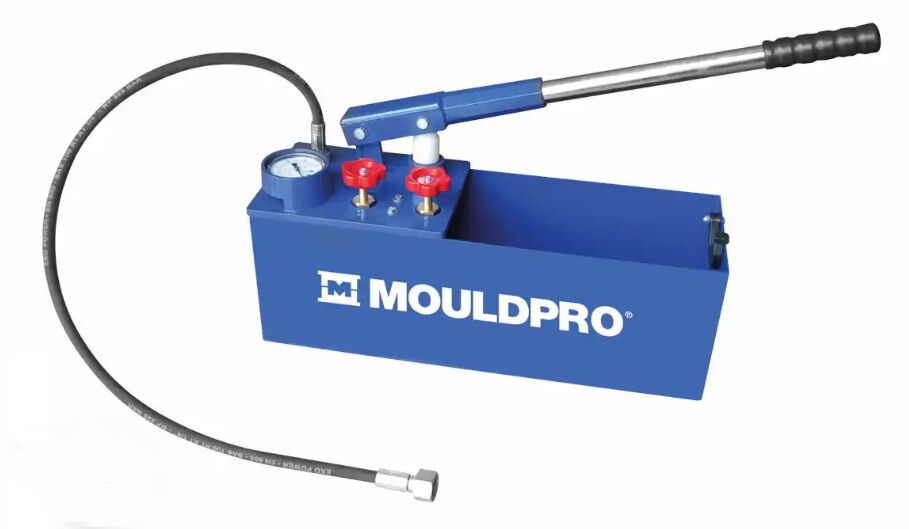

The Mouldpro pressure test unit is used for easy manual leakage test of mold circuits.
The unit has a built-in water tank, connected hose, and two (2) valve knobs to regulate the pressure into and out of the system. The system can be used for easy leakage test of mold circuits.
For normal tap water systems, like for drinking water, it is normal to use a pressure tester at 15 BAR / 217.56 PSI as a leakage test.
FEATURES & BENEFITS
| ITEM# | DIMENSIONS | TANK VOLUME | OUTPUT CONNECTION | MAX TEMP | MAX PRESSURE |
| MP-60 | 190x530x305 mm (7.48″x20.87″x12.01″) | 12 Liters / 3.17 Gallons | R 1/2″ Female BSPP | 50°C (122°F) | 60 BAR / 870 PSI |
