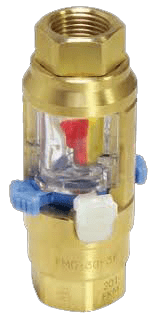

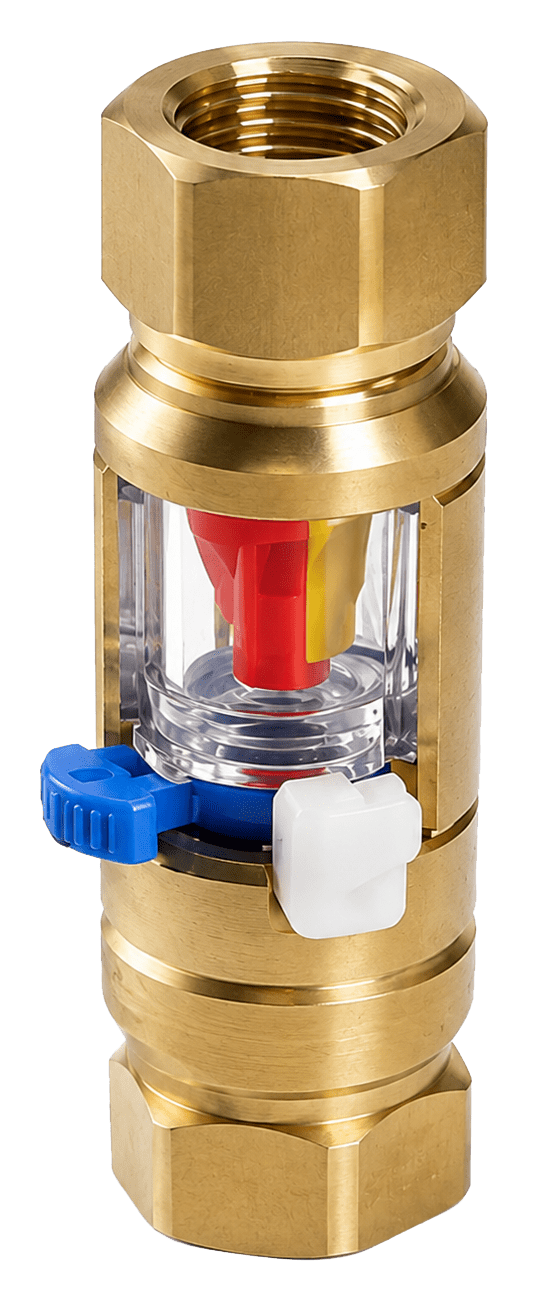

Nitto Kohki FMC-30 Flow Monitor

Item #: FlowMonitor-MAIN

From $70.00

Reset

The Nitto Kohki FMC-30 Flow Monitor allows you to check the flow of cooling water at a glance. Check the flow with the rotating two-colored impeller, operating at a fluid flow rate as low as 0.55 GPM to 5.25 GPM. The FMC-30 Flow Monitor is an easy and convenient method for checking stable and accurate coolant flow rate.

FEATURES & BENEFITS

  • Visibility: Conveniently view the fluid flow through the clear vane assembly with two-colored impeller from flow rates as low as 0.55 GPM to 5.25 GPM
  • Easy Maintenance: Easily remove and replace vane assembly for cleaning and maintenance without removing it from the piping
  • Safety: The white safety stopper prevents unintended removal of the plastic parts
  • Easy Installation: Installation and replacement are easy and effortless since the screw part of the T2 side rotates freely to the left and right
  • Sizes: 3/8″ NPT FxF and 1/2″ NPT FxF
  • Construction: Brass body with clear vane that hoses two-colored impellers
  • Flow Range: 0.55 GPM to 5.25 GPM
  • Temperature & Pressure: -50° F to +175° F, 145 PSI

Additional information

Weight Please select an option above.
Size

⅜" NPT FxF
½" NPT FxF

SKU FMC-30-3F-NPT
SKU FMC-30-4F-NPT
