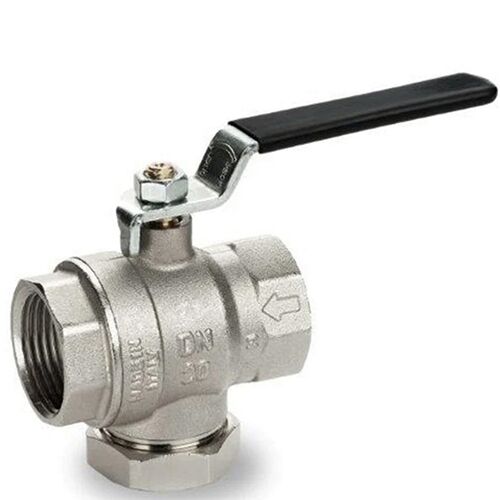

Ball Valve with Integrated Filter and Magnet

The New Standard in Injection Molding

Features & Benefits:

  • Cost Saving Solution
  • Combination Ball Valve and Filter Solution
  • Optional magnetic filter meaning that the unit can remove not only unwanted solid debris from the coolant but, also ultra-fine ferrous particles from within the water
  • A simple compact solution that replaces two ball valves and a Y strainer
  • Full Flow Ports
  • Low Pressure Drop
  • Compact Solution
  • Easy to be Cleaned and Maintained
  • Removeable 500 micron (35 mesh) Filter
  • Working temperature -20°C – 150°C
  • 30 Bar Maximum Pressure
  • Neodynium Magnet (12,000 Gauss)

Technical Specifications:

ITEM NO. CH L D A G
BVFM3/4 31 61,3 3/4″ 100 32,3
BVFM1 38 70,1 1″ 100 35,6
BVFM1-1/4 48 85 1.1/4″ 158 45
BVFM1-1/2 54 97,5 1.1/2″ 158 52
BVFM2 66 117 2″ 158 63

Contact us to learn more about Mouldpro inline water filters
