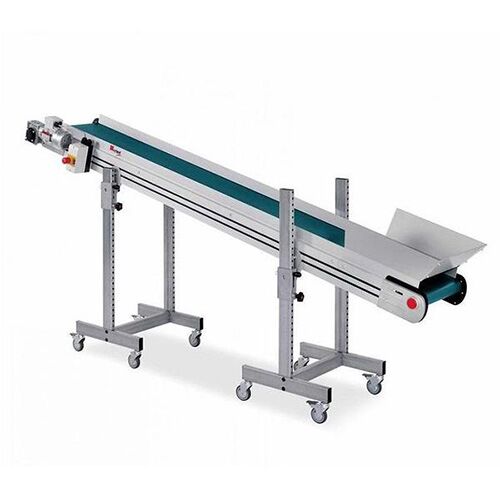

Inclined Conveyor with PU/PVC Belt

Reduce Labor, Optimize Performance & Improve Reliability with Crizaf Conveyors

Inclined Conveyor with PU/PVC Belt

New range of conveyors with PU/PVC belt. The new conveyors offer a real solution to new demands from the current market.

Technical Specifications:

Dimensions PO: from 500mm / to 7000mm (50mm increments)
UT: from 190mm / to 790mm (50mm increments)
Frame anodised extruded aluminium profile
die cast aluminium alloy head supports
Sidewalls anodised extruded aluminium profile
Stand support die cast aluminium alloy clamps
zinc plated steel legs
castors with brakes
Belt petrol green quadrangular pattern PVC
max temperature resistance 80°C in continuous
Drive direct (left side)
3 Phase – 400Vac/50Hz – 0.18kW – asynchronous motor
Speed 3,2 m/min
Control Start – Stop



Contact us to learn more about Crizaf conveyors
