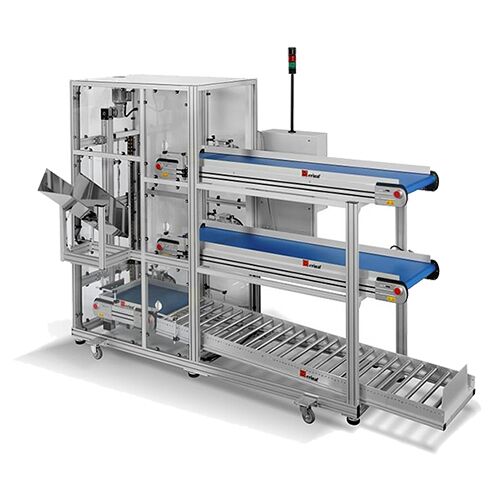

Multi-level System F3100

Linear filling and storage system made up from linear conveyors C1100, gravitational roller conveyor N1100 and lift conveyor.

Technical Specifications:

Conveyor frame anodised extruded aluminium profile
die cast aluminium alloy head supports
Sidewalls 1 anodised extruded aluminium profile
1 stainless steel adjustable sidewall
Stand support castors with brakes
Belt green PVC
max temperature resistance 80°C
Drive direct (right side)
3 Phase – 400Vac/50Hz – 0,18kW asynchronous motor
Speed 3,4 m/min, 6,8 m/min
Sensor photocell/refracting to detect the box in the filling position and box presence
Roller conveyor frame anodised extruded aluminium profile
extruded aluminium profile rollers supports
extruded aluminium profile box stop
Control Touch Screen
