Plastixs® HiTemp Insulated Flexible Metal Hose Assemblies

Item #: PLX-FMH6X72-O-MAIN

From $140.00

Reset

Ideal for use with HiTemp Manifold Assemblies

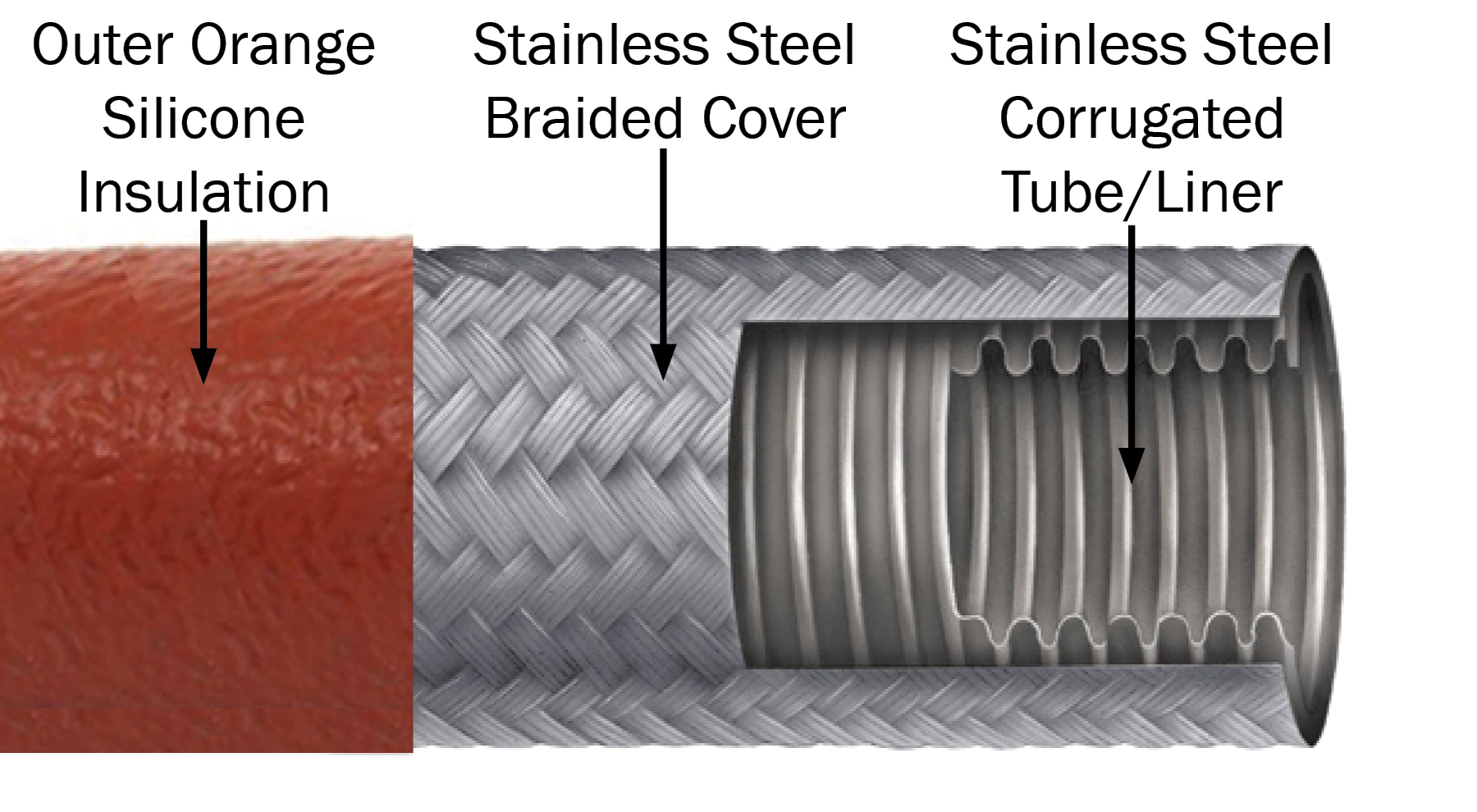

Flexible metal hose assemblies from Plastixs come equipped with stainless steel female swivel JIC fittings on each end. The inner stainless steel corrugated tube/liner is covered with a stainless steel overbraid and an orange or blue silicone insulation sleeve. Protective insulation sleeve is made of knitted fiberglass yarns in a flexible substrate and then coated with a high grade silicone rubber. Insulation sleeve is resistant to hydraulic fluids, lubricating oils and fuel, and helps prevent energy loss through hoses.

FEATURES & BENEFITS

  • Hose assemblies rated up to 600°F, 1000 PSI
  • All Stainless Steel construction
    • Stainless Steel corrugated tube/liner
    • Stainless Steel braided cover
  • Insulation sleeve available in orange or blue silicone
  • Available in 1/2″ and 3/8″ ID
  • Stainless steel female swivel JIC fittings on each end
  • Prevents energy loss through hoses
  • Provides optimal thermal insulation in high heat applications
  • Protective insulation sleeve protects employees from burns
  • Available in 1.5, 4, 6, 8 and 10 foot lengths

Additional information

Weight Please select an option above.
Hose Size

⅜"
½"
Color

Blue
Orange
Overall Length

18" (1.5 feet)
48" (4 feet)
72" (6 feet)
96" (8 feet)
120" (10 feet)
SKU PLX-FMH6X48-O
SKU PLX-FMH6X48-B
SKU PLX-FMH6X72-O
SKU PLX-FMH6X72-B
SKU PLX-FMH6X96-O
SKU PLX-FMH6X96-B
SKU PLX-FMH6X120-O
SKU PLX-FMH6X120-B
SKU PLX-FMH8X18-O
SKU PLX-FMH8X18-B
SKU PLX-FMH8X48-O
SKU PLX-FMH8X48-B
SKU PLX-FMH8X72-O
SKU PLX-FMH8X72-B
SKU PLX-FMH8X96-O
SKU PLX-FMH8X96-B
SKU PLX-FMH8X120-O
SKU PLX-FMH8X120-B
