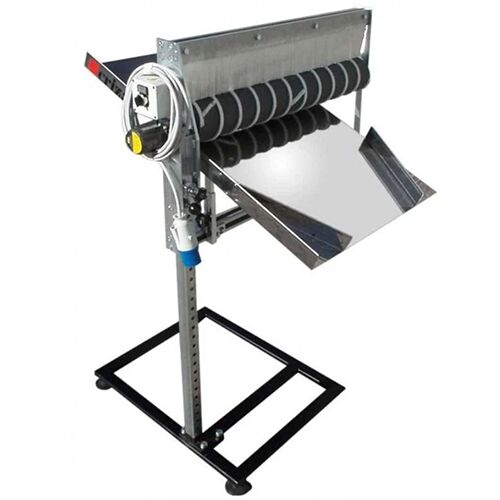

Transverse Spiral Separator S4700

Reduce Labor, Optimize Performance & Improve Reliability with Crizaf Conveyors

Transverse Spiral Separator S4700

Rotating roller separation system.

Technical Specifications:

Description Spiral separator
Frame 6060 anodized extruded aluminium profile 40x40mm
Zinc plated steel lateral support
Aluminum chute, vertical/incline adjustment
Leg Perforated zinc plated steel legs 30x70x950mm, vertical adjustment
End leg 4 levelling elements
Rotating rollers PVC, Ø110x700mm, PU spiral
Drive Belt drive
Asynchronous Motor 3PH 4poli (1360rpm) – 230Vac/50Hz
Power 0,04kW
Gear box with
Speed Variable (max 40% of max speed)
Control Panel IBox-S – variable speed
Power Supply 230Vac / 1Ph / 50Hz (other Voltages on request)


Contact us to learn more about Crizaf conveyors
