AIRTECT - Plastic Leak Alarm System



AIRTECT - Plastic Leak Alarm System

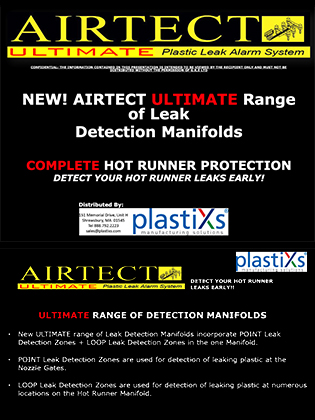

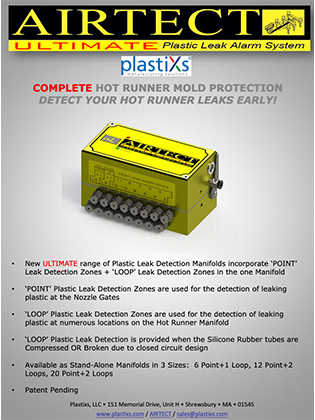

The AIRTECT Plastic Leak Alarm System is a unique device which gives protection against plastic leak damage, either within a hot runner mold or at the machine injection nozzle.

FEATURES & BENEFITS:

  • Nozzle and hot runner mold protection up to 32 zones
  • Direct plastic leak presence detection
  • Robust 1.6mm or 2.0mm stainless steel sensor tubes
  • 24VDC input power, 24VDC/0.5 Amp Max Ouput
  • Mold temperature monitoring
  • Programmable Machine Interlocks
  • System uses a very sensitive pressure differential switch
  • Calibrates pressure drop across all tubes at start-up
  • Sensor Tubes easily locate within existing wiring channels
  • Leak location(s) displayed on LED or LCD clear text display
  • Fast payback (less downtime and greatly reduced repair costs)
  • 24 hour peace of mind
  • Easy installation

LA500

La500 lm2050 controllers circle

LA500 or LM2050 Controllers with programmable settings for fixed and modular manifold control systems


Fixed leak alarm manifolds circle

Fixed Leak Alarm Manifolds are self-contained fro permanent mounting to the mold


Modular leak alarm manifolds cirlce

Modular Leak Alarm Manifolds allow multiple molds to work with LA500 or LM2050 Controllers installed on a molding machine


Fixed stand alone leak alarm manifolds circle

Fixed Stand-Alone Leak Alarm Manifolds do NOT require connection to an LA500 or LM2050 Controller and are non-programmable, direct acting, 24VDC with N/O and N/C interlock contacts


Modular stand alone leak alarm manifolds circle

Modular Stand-Alone Leak Alarm Manifolds do NOT require connection to an LA500 or LM2050 Controller and are non-programmable, direct acting, 24VDC with N/O and N/C interlock contacts


Modular leak alarm bases circle

Modular Leak Alarm Manifold Bases work with the Modular Leak Alarm Manifolds


Accessories and spare parts circle

Airtect Accessories and Spare Parts function with Airtect Plastic Leak Alarm Systems
