Plastixs® PE3 Straight Ejector Pins, H-13 Hardened-Through (50-55 Rc)

Technical Documents

Custom Pins & Blades Request Form

Custom Punches & Perforators Request Form

Custom Sleeves & Core Pins Request Form

Ejector Pins – H13 MSDS

Ejector Pins – PE3 Straight Pins Through-Hardened Cut Sheet

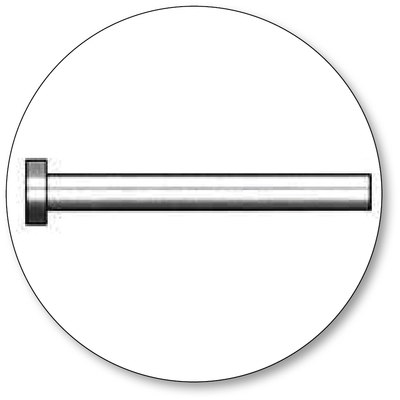

Plastixs PE3 Straight Ejector Pins, H-13 Hardened-Through (50-55 Rc)

Item #: (PE3-062L6) (PE3-078L6) (PE3-094L6) (PE3-094L10) (PE3-109L6) (PE3-125L6) (PE3-125L10) (PE3-125L14) (PE3-141L6) (PE3-156L6) (PE3-156L10) (PE3-172L6) (PE3-187L6) (PE3-187L10) (PE3-187L14) (PE3-203L6) (PE3-218L6) (PE3-234L6) (PE3-250L6) (PE3-250L10) (PE3-250L14) (PE3-265L6) (PE3-281L6) (PE3-312L6) (PE3-312L10) (PE3-312L14) (PE3-343L6) (PE3-375L6) (PE3-375L10) (PE3-375L14) (PE3-406L6) (PE3-406L10) (PE3-406L14) (PE3-438L6) (PE3-438L10) (PE3-438L14) (PE3-469L6) (PE3-469L10) (PE3-469L14) (PE3-500L6) (PE3-500L10) (PE3-500L14)

From $1.95

Pin Diameter
Pin Length	Reset

Description
Product Data

Plastixs PE3 Straight Ejector Pins, H-13 Hardened-Through (50-55 Rc)

Plastixs PE3 Straight Ejector Pins are hardened throughout to minimize dishing, nicking and bending. Heads are annealed for easy machining.

Standard: American Inch
Material: H-13 Hotwork Die Steel
Core: Hardened Through to 50-55 HRC
Surface: Nitrided to 65-74 HRC

Additional information

Weight	Please select an option above.
Pin Diameter	(.0620) 1/16", (.0766) 5/64", (.0933) 3/32", (.1089) 7/64", (.1245) 1/8", (.1401) 9/64", (.1558) 5/32", (.1714) 11/64", (.1870) 3/16", (.2026) 13/64", (.2183) 7/32", (.2339) 15/64", (.2495) 1/4", (.2651) 17/64", (.2808) 9/32", (.3120) 5/16", (.3433) 11/32", (.3745) 3/8", (.4058) 13/32", (.4370) 7/16", (.4683) 15/32", (.4995) 1/2"
Pin Length	6", 10", 14"
SKU	PE3-062L6
SKU	PE3-078L6
SKU	PE3-094L6
SKU	PE3-094L10
SKU	PE3-109L6
SKU	PE3-125L6
SKU	PE3-125L10
SKU	PE3-125L14
SKU	PE3-141L6
SKU	PE3-156L6
SKU	PE3-156L10
SKU	PE3-172L6
SKU	PE3-187L6
SKU	PE3-187L10
SKU	PE3-187L14
SKU	PE3-203L6
SKU	PE3-218L6
SKU	PE3-234L6
SKU	PE3-250L6
SKU	PE3-250L10
SKU	PE3-250L14
SKU	PE3-265L6
SKU	PE3-281L6
SKU	PE3-312L6
SKU	PE3-312L10
SKU	PE3-312L14
SKU	PE3-343L6
SKU	PE3-375L6
SKU	PE3-375L10
SKU	PE3-375L14
SKU	PE3-406L6
SKU	PE3-406L10
SKU	PE3-406L14
SKU	PE3-438L6
SKU	PE3-438L10
SKU	PE3-438L14
SKU	PE3-469L6
SKU	PE3-469L10
SKU	PE3-469L14
SKU	PE3-500L6
SKU	PE3-500L10
SKU	PE3-500L14
